LCD Vs DLP Vs LCoS , Why ByteSense Bets on LCD?

With the growing popularity of rental living and the upgrade of home entertainment, projectors are no longer exclusive to business offices. Instead, they have become the core choice for young people to "achieve large-screen freedom at a low cost." However, faced with a wide array of products on the market, many consumers find themselves confused: What are the differences between the three mainstream technologies – DLP, LCD, and LCoS? Why do some projectors cost thousands of yuan while others only a few hundred? Why has ByteSense, a brand focusing on the LCD projector track, firmly chosen this technical route? Today, we’ll break it down thoroughly to help you select the perfect "visual companion" for your needs.  I. Understand the Core Differences of Three Projection Technologies in 3 Minutes  The image quality and user experience of a projector are essentially determined by its imaging technology. These three technologies are like different "artistic schools" – each with unique principles, styles, and effects.  1. DLP: A Representative of Exquisiteness with Inherent Shortcomings

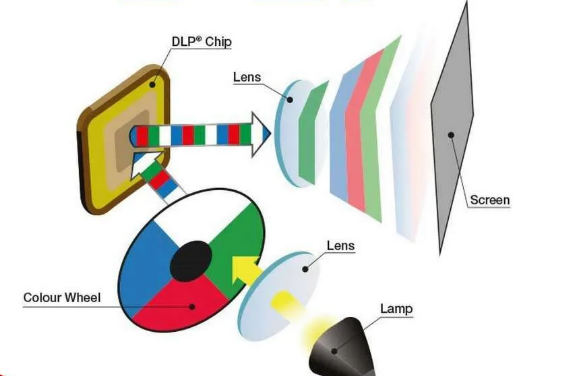

Digital Light Processing (DLP) technology, developed by Texas Instruments, is centered on the DMD (Digital Micromirror Device) chip. The chip’s surface is densely covered with millions of micron-sized aluminum micromirrors, each corresponding to a pixel. DLP uses digital optical imaging: the original image is first digitized into a binary signal, which is then input into the DMD chip. Combined with colored light from the light source and processed by a color wheel, the signal is directly modulated digitally to form an image. This eliminates the need for digital-to-analog conversion, minimizing signal attenuation and noise while delivering images with rich grayscale levels, sharp details, realistic color reproduction, and strong layering – offering an exceptional visual experience.   Its **advantages** are prominent:   - High pixel fill rate, resulting in sharp image edges and minimal "screen door effect."   - Excellent contrast ratio, with distinct light and dark layers.   - Fast response speed, ideal for high-speed motion scenes and gaming, reducing motion blur and input lag.   - Compact size: Single-chip DLP design enables more portable projectors.   However, its **shortcomings** cannot be ignored:   - "Rainbow effect" (for single-chip DLP): Some sensitive users may perceive fleeting red, green, and blue flashes when viewing, especially in high-contrast scenes. This is caused by the high-speed rotation of the color wheel and human visual persistence. High-end DLP projectors have significantly mitigated this issue through faster color wheel speeds and multi-segment color wheel designs, but at a much higher cost.   - Color performance: Compared to 3LCD, single-chip DLP may lag slightly in color saturation and accuracy, with less vivid green and yellow tones. Color reproduction is not as precise as LCD or LCoS.   A key barrier is **price**: Ordinary single-chip DLP projectors typically cost over 2,000 yuan, while professional 3DLP projectors can range from tens of thousands to hundreds of thousands of yuan. They are bulky, power-hungry, and completely unsuitable for home use.  2. LCoS: The King of Image Quality, Yet Too Niche for Mass Adoption

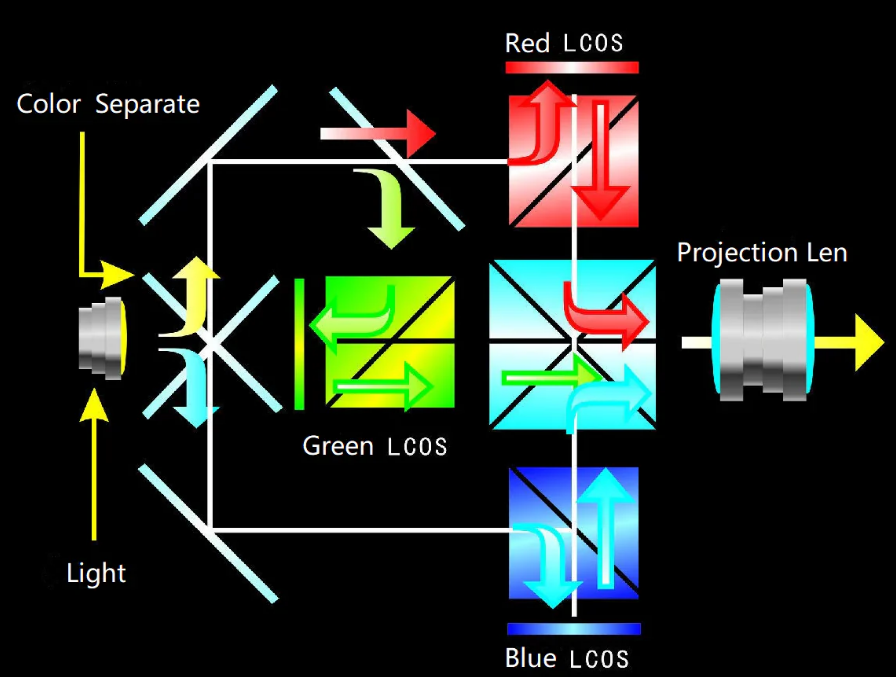

Liquid Crystal on Silicon (LCoS) is a reflective technology that combines the advantages of LCD and DLP, hailed as the "pinnacle of image quality" in the projection industry. It boasts LCD’s color performance and DLP’s high contrast, with an extremely high pixel fill rate that delivers smooth, detailed images free of rainbow effects and screen door effects – making it the top choice for high-end home theaters.   Its **advantages** lie in ultimate experience:   - Industry-leading native contrast ratio, producing deep blacks.   - Accurate and natural color reproduction, with exceptional detail rendering.   - High resolution potential, easily supporting 4K and even 8K display.   Brands like Sony’s SXRD and JVC’s D-ILA series are iconic examples of LCoS technology.   However, **barriers to popularization** are significant:   - Complex manufacturing processes and low yield rates result in exorbitant prices – entry-level LCoS projectors usually cost over 10,000 yuan.   - Bulky and heavy, with high heat dissipation requirements, offering almost no portability.   - Lower brightness output than DLP at the same power, struggling to meet needs in bright environments. For ordinary consumers, LCoS remains an "unattainable technical benchmark."  3. LCD: The Cost-Performance Leader Undergoing Comprehensive Upgrades

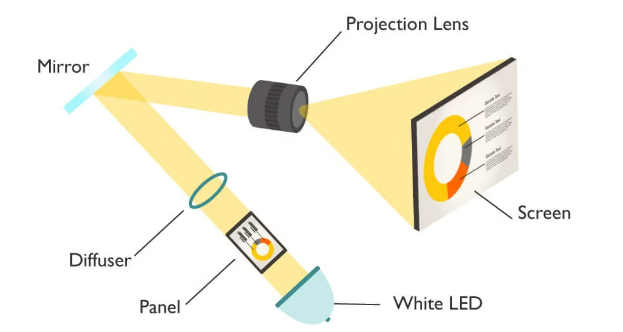

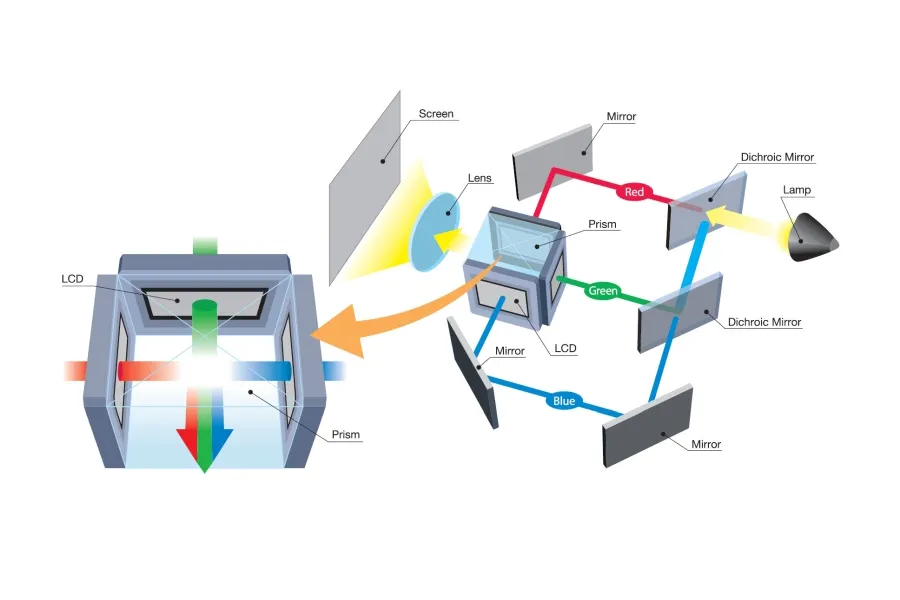

Liquid Crystal Display (LCD) technology is the most mainstream choice on the market, divided into single-chip LCD and 3LCD categories. Similar to LCD TVs, it forms images with varying grayscale and colors by controlling the opening and closing of liquid crystal molecules to filter light.   Its **traditional advantages** are down-to-earth:   - High color saturation: Three primary colors are synthesized simultaneously, delivering natural, soft images completely free of rainbow effects.   - Cost-effectiveness: As the primary technology for sub-1,000-yuan projectors, it offers outstanding value for money.   - Excellent color performance for 3LCD: Superior color brightness and accuracy, ideal for movie watching and photo display.   Many once-criticized **shortcomings** are being addressed through technological innovation:   - The "screen door effect" of early LCD projectors has been significantly reduced in 1080P models thanks to the popularization of high-definition LCD panels (3.0-inch, 3.5-inch, and 4-inch).   - Portability: By adopting smaller LCD panels (2.1-inch and 2.69-inch) and optimizing structural design, models like ByteSense’s G2 and P3C achieve portability comparable to DLP projectors.   - Brightness: The application of 3-inch and 3.5-inch LCD panels has pushed brightness beyond 300 ANSI lumens, fully meeting daily viewing needs.   According to the 2025 Projector Market Report, LCD technology dominates with a 69.6% market share, with single-chip LCD leading the entry-level and portable segments due to its unbeatable cost-performance ratio.  II. Why ByteSense Bets on LCD: Four Core Logics Targeting Market Pain Points  Amid a landscape where DLP dominates the mid-to-high-end market and LCoS leads in technical excellence, ByteSense’s firm choice of the LCD track is no blind follow – but a strategic decision based on in-depth insights into global market demands, technological trends, and user pain points.  1. Cost-Performance: A Stepping Stone for Market Penetration in an Economic Downturn  Against the backdrop of slowing global economic growth, consumers are making more rational purchasing decisions, with "getting more for less" becoming a mainstream demand. In many emerging markets, projector penetration remains low, primarily due to high price barriers.   DLP projectors rely on Texas Instruments’ monopolized DMD chips, keeping costs high; LCoS’s premium pricing puts it out of reach for most consumers. In contrast, LCD projectors have hardware costs only about 1/3 of similarly configured DLP products, enabling large-screen experiences at a lower price. ByteSense has seized this opportunity to let budget-constrained users enjoy 100-inch+ viewing experiences for less than 1,000 yuan, rapidly expanding its global footprint. For young renters, students, and consumers in emerging markets, LCD projectors are not a "compromise" but the "perfect fit."  2. Continuous Technological Iteration: LCD Enters an Era of "Cost-Performance Explosion"  Many still hold outdated perceptions of LCD projectors as "mediocre image quality and bulky design." In reality, this technical route is undergoing comprehensive upgrades, with strong support from upstream and downstream industrial chains driving significant competitiveness gains.   - **Core hardware upgrades**: Chip manufacturers have launched cost-effective main control chips tailored for LCD projectors. For example, the Amlogic T950S chip adopted across ByteSense’s product line has proven stability, effectively avoiding system lag and WiFi disconnections. Screen manufacturers continue to upgrade panel technology, making 1080P resolution standard and significantly improving color reproduction.   - **Structural optimization**: The use of small-size LCD panels has made projectors increasingly portable. ByteSense’s P3C model weighs only 0.8kg, easily fitting into a backpack.   - **Software ecosystem improvement**: Customized services from third-party platforms allow LCD projectors to directly access mainstream streaming content like Netflix and YouTube, solving the early pain point of "owning a projector but lacking content."   Hardware upgrades combined with software adaptation have enabled LCD projectors to achieve leapfrog development – "smaller size, higher brightness, and better experience."  3. Replacing Small-Screen TVs: LCD Becomes the "Bridge" for Large-Screen Popularization  In emerging markets such as Southeast Asia, Central Asia, and Latin America, 32-inch TVs remain the mainstream. Larger-size TVs often double in price, deterring many consumers. LCD projectors perfectly resolve the conflict between "large-screen demand" and "budget constraints."   A mid-range ByteSense F3 projector (around 1,000 yuan) can project a 300-inch super-large image with 350 ANSI lumens brightness, delivering TV-comparable viewing effects at night – while costing only 1/5 or less of a same-size TV. For consumers in these markets, LCD projectors are not "TV replacements" but "large-screen upgrades" – enabling home theaters without replacing furniture or bearing high costs. This "low-cost large-screen solution" is the core driver behind LCD projectors’ global popularity.  4. Simple, Reliable Structure with Low Maintenance Costs  For ordinary users, "post-purchase maintenance" of electronic products is equally important. LCD projectors feature a relatively simple structure, with core components including the LCD panel, light source, and main control chip – no complex color wheels or DMD chips (like DLP) nor precision reflective optical systems (like LCoS), resulting in lower failure rates.   Even if malfunctions occur, repairs are convenient: LCD panel replacement costs are low, and common issues can be resolved at local repair shops – no reliance on professional after-sales services or original accessories like DLP or LCoS. This "durable and easy-to-repair" feature is particularly suited to consumption scenarios in emerging markets, reducing after-sales pressure for brands and allowing ByteSense to focus more on product R&D and market expansion.  III. Buying Guide: Choose Based on Your Needs  After explaining the technical differences and ByteSense’s strategic logic, here’s a practical buying guide to help you avoid pitfalls:   - **Limited budget, pursuing large-screen experience**: Prioritize single-chip LCD projectors. Models like ByteSense’s G2 and P3C are affordable and portable, ideal for rentals, camping, and student dormitories. For better performance, the G3 and F3 series offer 1080P resolution and 300+ ANSI lumens brightness, fully meeting daily viewing needs.   - **Prioritize color and viewing experience**: Opt for 3LCD projectors. They deliver natural color reproduction without rainbow effects, suitable for home theaters and photo displays – though you’ll need to accept their relatively larger size and slightly higher price.   - **Gamers or contrast enthusiasts**: Single-chip DLP projectors are a better choice, offering fast response speeds and sharp images. However, be mindful of the potential rainbow effect – we recommend an in-person experience before purchasing.   - **Unlimited budget, pursuing ultimate image quality**: Go for LCoS projectors. Perfect for high-end home theaters and professional audio-visual rooms, they deliver cinema-level immersion – but prepare a budget of over 10,000 yuan.  Conclusion: No "Best" Technology, Only What Suits the Market  DLP’s sharpness, LCoS’s excellence, and LCD’s accessibility – each technology has its strengths. There is no absolute "best" technology; only what suits the market is the key. ByteSense’s choice of the LCD track stems from a deep understanding of global market core demands: in an era of rational consumption, consumers need practical solutions with balanced cost-performance, not "spec-heavy" extreme products.   With continuous LCD technological upgrades and improved industrial chain support, this "low-cost, high-quality, and easy-to-maintain" projection solution is accelerating the global popularization of large-screen displays. For ordinary consumers, this means enjoying greater happiness at a lower cost; for the industry, it transforms projectors from "niche gadgets" to "mass consumer goods."   If you’re seeking a cost-effective large-screen solution, explore ByteSense’s LCD projector series – from the portable P3C to the high-performance F3, there’s a model to fit every need. After all, the ultimate purpose of technology is to let more people enjoy a better life through innovation.   Do you value image quality, portability, or price most when choosing a projector? Welcome to share your thoughts in the comments!   For more product information, visit our official website: www.bytesense.cn.   ---ByteSense is actively seeking B-end partners, including wholesalers, retailers, and brands, and sincerely invites in-depth OEM/ODM cooperation! Leveraging our core product competitiveness – an ultra-portable product matrix represented by ByteSense F3/P3C/G2 – we help partners create high-turnover, high-margin potential bestsellers. We offer one-stop solutions (flexible MOQ, color customization, packaging design, shelf design, promotional material design, etc.), highly competitive bulk supply prices, and systematic quality control experience to help you quickly enter the high-growth LCD projector track!
